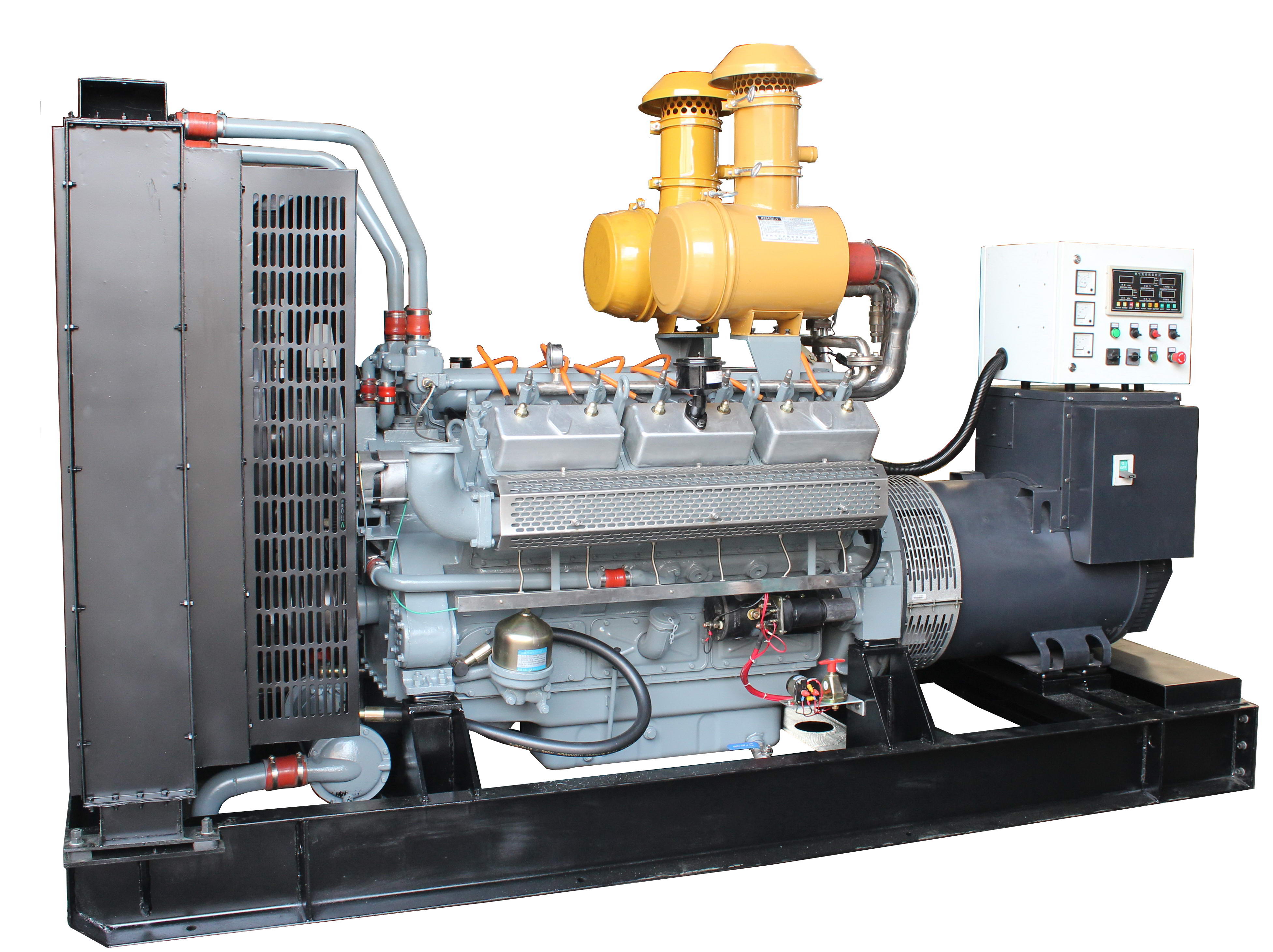

250KW LPG Gas Generators

1.Model:  250GFT61

Continuous Power（@25℃）:           220kW/275KVA
Prime Power:                          240KW/300KVA
Standby Power:                        250kW/313KVA
Gas engine model:     12V138RT (Hehai Power Patent)
Alternator model:                ECO38-3LN (Meccalte)
Rated Current:                                 450A
Rated Voltage:                              400V/230v
Factor:                                      0.8(Lag)
Frequency:                                      50Hz
Rated RPM:                                 1500r.p.m
Phases:                                3 phase 4 wires
Steady Voltage regulation:                       ±2.8%
Voltage settling time:                               1.5s
Instant Voltage Regulation:                 +20%，-15%
Frequency regulation:                  0～8% available
RPM regulation:                                ≤0.9%
Frequency recovery time:                          ≤4s
Voltage regulation:                              ≤±0.8%
Start mode:                                   DC24V
Battery charging mode:        Gas engine with alternator
Overload capacity:  110% continuous power load available
for 1 hour per 12 hours running


2.The insulation between the phases and earth is not less than 2 MΩ.
3.The generator set comes with copper grounding bolts and obvious ground label
4. The Gas generator set could start smoothly with temperature not less than 5℃ and no preheating of oil and coolant.
5.The no-load voltage regulation is from 95% to 105% of the rated voltage
6.Net Weight of Gas generator set：About 4000kg
7.Dimension of Gas generator set： 3700mm×1350mm×1900mm。
